SCS Products

Learn about the Static Control Solutions (SCS) Products offered by CE3S.

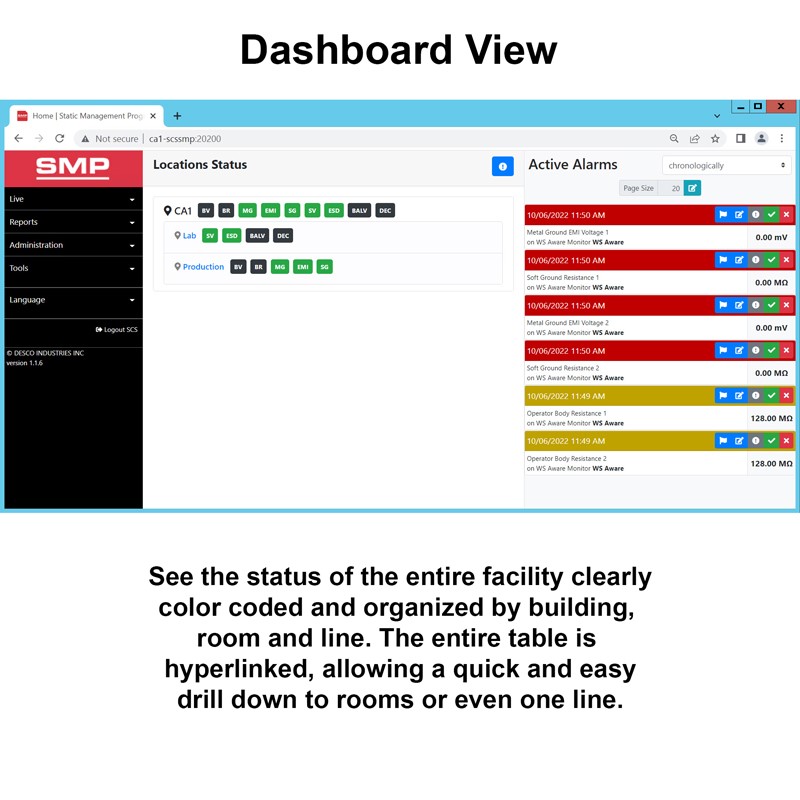

SCS Static Management Program (SMP)

The SCS Static Management Program (SMP) is a centralized software solution that continuously monitors your ESD process control system across all stages of manufacturing. SMP captures real-time data from SCS workstation monitors, equipment monitors, ESD event continuous monitors, and single fan ionizers, providing a clear picture of critical manufacturing processes. All activity is stored in a database for ongoing quality control, allowing you to pinpoint areas of concern and prevent ESD events before they impact production. With quantifiable data and trend analysis, SMP helps manufacturers improve yields, increase automation, and demonstrate measurable return on investment.

Features and Highlights

  • Continuous real-time ESD monitoring across manufacturing stages
  • Captures data from workstation, equipment, and event monitors
  • Database storage enables trend analysis and quality control

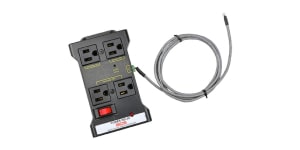

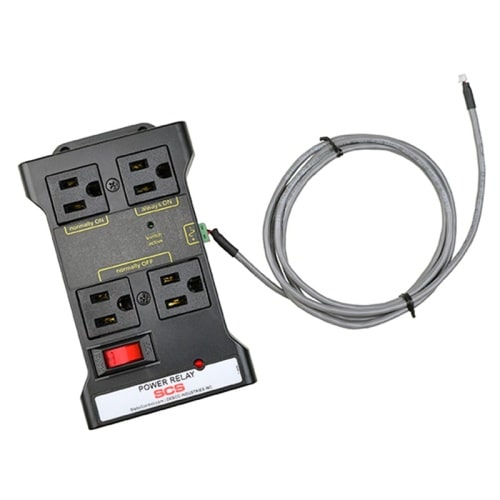

SCS Power Relay for WS Aware Monitor

The SCS Power Relay is a four-outlet, relay-controlled power strip designed to extend the functionality of the WS Aware Monitor (models 770067 and 770068). Its outlet configuration—two normally off, one normally on, and one always on—gives users flexible control over workbenches, hand tools, and other equipment based on monitor status. Built for safety in sensitive work areas, it features 3 kV optical isolation, relay hysteresis, and de-bounce protection to eliminate shock hazards and prevent relay chatter. A 3600 W MOV and 12 A thermal circuit breaker provide surge and overload protection across a 90–140 VAC range.

Features and Highlights

  • Four outlets with normally-off, normally-on, and always-on configurations
  • 3 kV optical isolation and 3600 W MOV surge protection
  • Compatible with WS Aware Monitor models 770067 and 770068

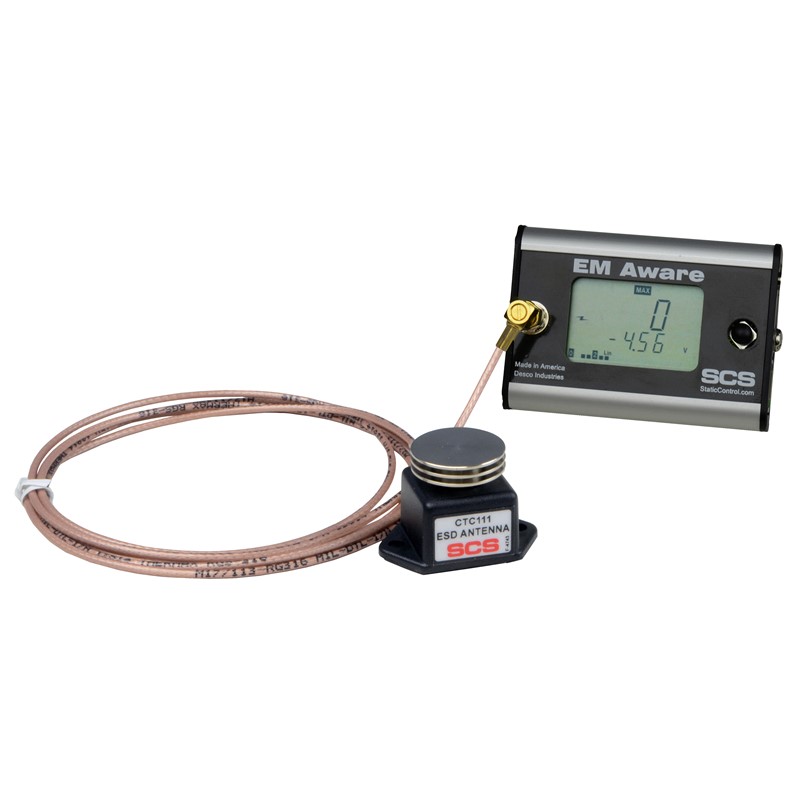

SCS EM Aware Monitor

The SCS EM Aware Monitor tracks three critical indicators of ESD problems: ESD events, changes in static voltage field, and ionizer performance, with fully adjustable thresholds for each. Functioning as a miniature radio receiver tuned to the unique waveform of an ESD event, it detects and measures electromagnetic radiation generated by discharges—stronger events produce stronger signals. The monitor features an aluminum enclosure, LCD display, control joystick, remote antenna, relay terminal, and Ethernet connectivity. It meets the continuous monitor requirements of ANSI/ESD S20.20 per ESD TR1.0-01 and ANSI/ESD STM3.1, supporting reliable ground monitoring for high-value production.

Features and Highlights

  • Monitors ESD events, static voltage changes, and ionizer performance
  • Adjustable thresholds with LCD display and Ethernet connectivity
  • Meets ANSI/ESD S20.20 continuous monitor requirements

Want more information or interested in a demo?

If you’re looking for more information on a specific product listed here, or are interested in a hands-on demo experience, let us know.

Request Info/Demo

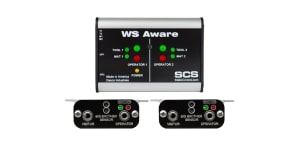

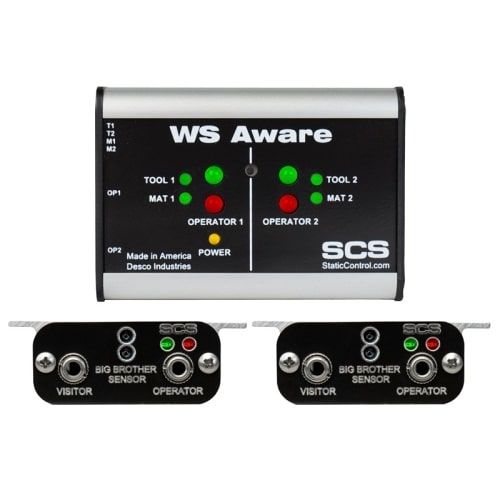

SCS WS Aware Dual-Wire Monitor with Big Brother Remotes

The SCS WS Aware Dual-Wire Monitor with Big Brother Remotes provides continuous ESD compliance monitoring for two workstations, verifying path-to-ground integrity for operators, work surfaces, and metal tools per ANSI/ESD S20.20. Ethernet integration with the Static Management Program (SMP) streamlines collection of operator and mat resistance data, while digital signal processing applies a 0.05V test voltage safe for sensitive components. The system alarms on unsafe body voltage and EMI on metal grounds to prevent equipment damage. Big Brother sensor technology in the remote terminals actively detects operator presence and ensures proper grounding, with terminals placeable up to 10 feet away.

Features and Highlights

  • Continuous ESD monitoring for two operator workstations
  • Big Brother sensors verify operator presence and grounding
  • SMP Ethernet integration with NIST-calibrated performance

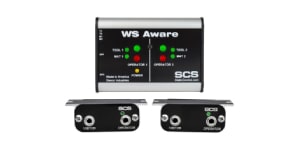

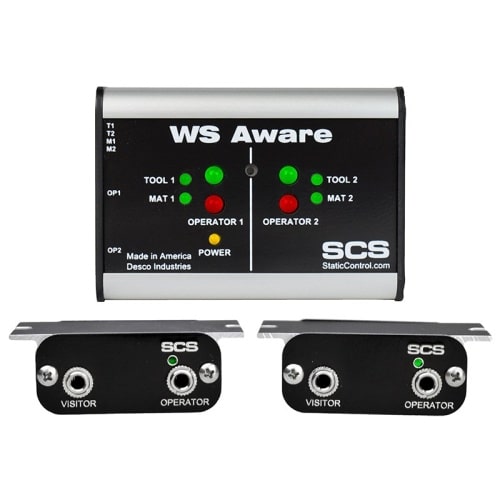

SCS WS Aware Dual-Wire Monitor with Standard Remotes

The SCS WS Aware Dual-Wire Monitor with Standard Remotes is a continuous workstation monitor that verifies path-to-ground integrity for two operators, work surfaces, and metal tools, meeting ANSI/ESD S20.20 requirements. Ethernet connectivity enables integration with the Static Management Program (SMP) for collecting operator and mat resistance data, while digital signal processing applies an ultra-low test voltage safe for sensitive components. The system detects operator body voltage and EMI on metal grounds, triggering alarms for conditions that could cause electrical overstress. It includes two remote terminals placeable up to 10 feet away and runs on a global-compatible 100–240VAC adapter.

Features and Highlights

  • Continuously monitors two operators, work surfaces, and tools
  • Ethernet output for SMP network data collection
  • Body voltage and EMI alarms prevent electrical overstress

Want more information or interested in a demo?

If you’re looking for more information on a specific product listed here, or are interested in a hands-on demo experience, let us know.

Request Info/Demo

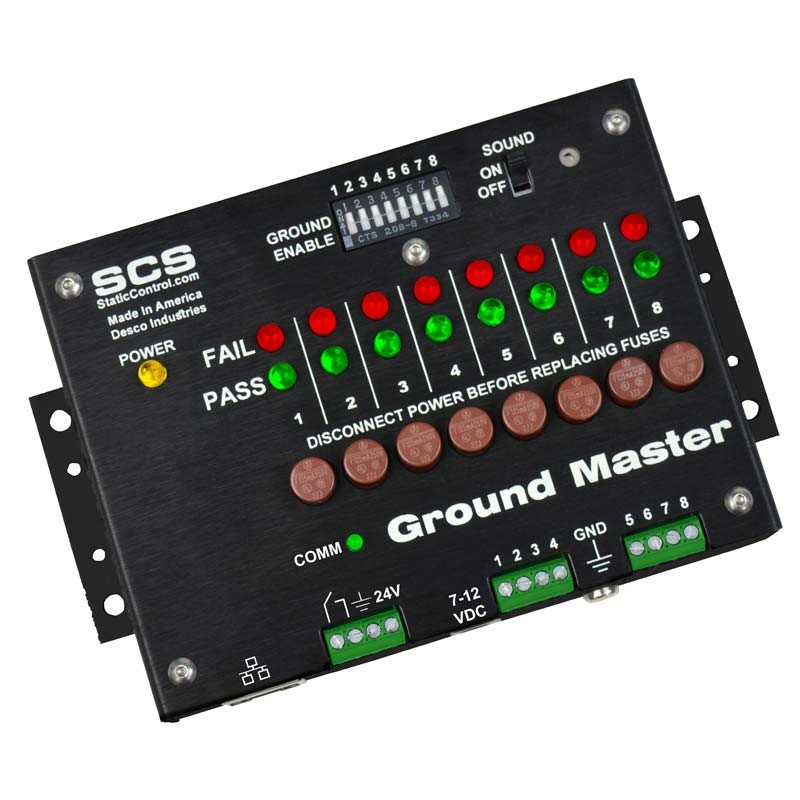

SCS Ground Master Monitor

The SCS Ground Master Monitor is an equipment ground continuous monitor that tracks the path-to-ground impedance and electromagnetic integrity of up to eight metal tool connections. Designed for use in semiconductor, disk drive, flat panel, and electronic equipment manufacturing environments, it provides both visual and audible alarms along with fuse protection on each channel. The monitor also detects electromagnetic interference (EMI) on connected tools, alarming on conditions that could cause equipment lockups or malfunction. Each unit is calibrated to standards traceable to NIST and meets the continuous monitor requirements of ANSI/ESD S20.20 per ESD TR53.

Features and Highlights

  • Monitors path-to-ground impedance on up to eight tools
  • EMI detection with visual, audible, and fuse-protected alarms
  • NIST-traceable calibration meeting ANSI/ESD S20.20 requirements

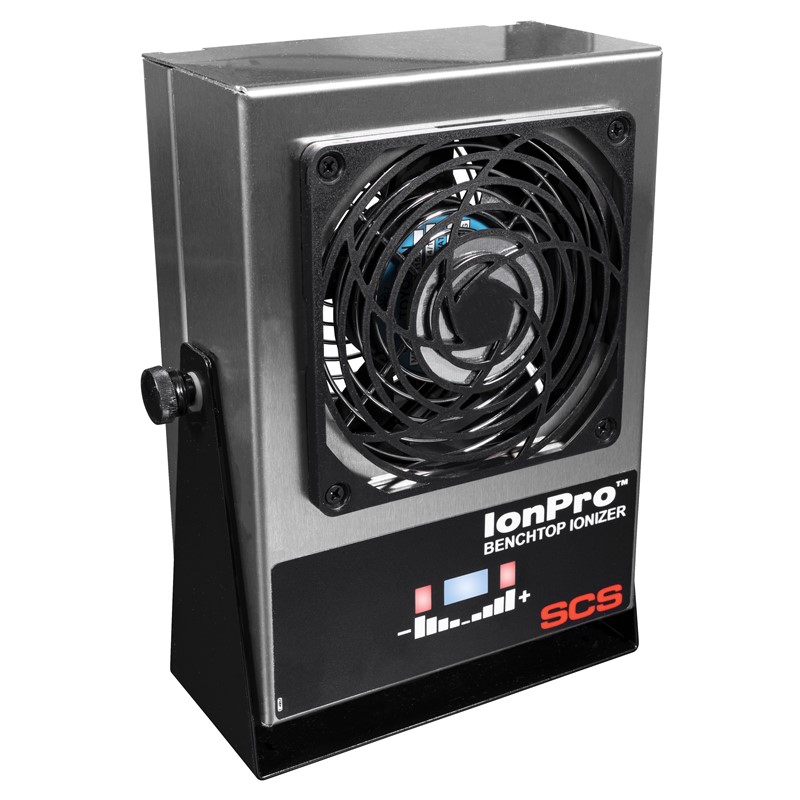

SCS Ion Pro™ Benchtop Ionizer

The SCS Ion Pro™ Benchtop Ionizer neutralizes electrostatic charges on insulators and ungrounded conductors with fast discharge times under 1.5 seconds at 12 inches and a ±3 volt offset, exceeding ANSI/ESD S20.20 and ESD TR53 limits. The unit continuously monitors its own offset voltage and discharge time, alarming if either exceeds defined limits. Steady-state DC emitters are spaced to prevent ion recombination and broaden coverage, while a dual-speed fan delivers consistent airflow. A stainless steel enclosure and multi-mount stand minimize contamination in clean environments, and patented capacitance-based sampling continuously adjusts output to maintain balance with minimal maintenance.

Features and Highlights

  • Sub-1.5-second discharge time with ±3V offset voltage
  • Self-monitoring with alarms for balance and discharge limits
  • Stainless steel enclosure with dual-speed fan and multi-mount stand

Request a Demo/Information

    Try Our SCS Products

    Desco Industries, Inc. acquired 3M’s Static Control business in 2015, forming SCS, the largest static control product manufacturer in North America. With roots in 3M’s innovations like the Metal-Out Static Shielding bag, SCS controls the entire supply chain from raw materials to finished products. Their facility in North Carolina produces a wide range of static control shielding and barrier bags. The 2006 acquisition of Credence Technologies added high-end ESD monitoring equipment, improving product quality and reliability.

    Are you interested in a hands-on experience or want to see these products in action? Please provide us a few contact details and experience why so many businesses turn to CE3S for reliable products and solutions.
