AIM Solder Products
Learn about the AIM Solder products offered by CE3S.
CE3S Partner
AIM Makes Solder Paste, Wire, and Bar for Electronics Assembly
AIM Solder makes solder assembly materials for electronics, LED lighting, mobile devices, automotive, renewable energy, and aerospace work. It runs support and manufacturing facilities across North and South America, EMEA, and Asia.
Cumberland Electronics Strategic Supply Solutions (CE3S) supplies AIM solder paste, cored wire, and bar solder. Tell us your alloy, process, and volume, and we’ll help you pick the right product or set up a sample.
Why Order AIM Through CE3S
- Family-owned and serving manufacturers since 1962
- Help choosing and cross-referencing parts
- No minimum order constraints
- One point of contact from quote to delivery
- 350+ product lines on one account
Lower Your Alloy Cost With REL61
Rising silver prices cut into margins, and switching to a cheap, low-quality alloy isn’t the answer. AIM REL61 uses tin, bismuth, copper, and silver to deliver the reliability of SAC alloys at a significantly lower cost.

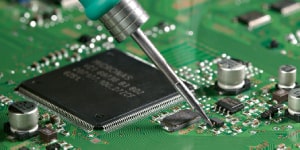

AIM H10 Halogen-Free Solder Paste
H10 is a halogen-free, no-clean solder paste built for robust, stable performance in automotive, LED lighting, and aerospace assemblies. It achieves a transfer efficiency of over 90% on area ratios of 0.50 and offers a stencil life of over 8 hours.
Strong wetting eliminates NWO (HiP) defects and improves pad coverage on all surface finishes. H10 also reduces voiding on BGA, BTC, and LGA and improves electrochemical reliability for low stand-off devices. It’s zero halogen according to EN14562, halide-free according to the current revision of IPC J-Std-004, and compatible with AIM’s complete range of no-clean flux chemistries.
Features and Highlights
- Halide-free and halogen-free
- Low BTC and BGA voiding
- Prints down to a 0.50 area ratio with T4
- Available in multiple lead-free alloys
- REACH and RoHS compliant

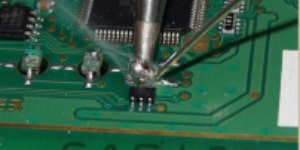

AIM Glow Core Wire Solder
Glow Core is a no-clean cored wire solder with excellent wetting on both leaded and lead-free alloys. Its activator gives fast cycle times and strong capillary action, which improves thermal transfer and solder penetration into plated through holes and surface mount interconnections. Post-process residues are low to medium, electrically safe, and don’t need cleaning.
For best results, run a tip temperature of 300 to 400°C (575 to 750°F) for leaded alloys and 370 to 425°C (700 to 800°F) for lead-free and SN100C® alloys, and use NC280 if you need extra flux. Glow Core comes in Sn/Pb, Sn/Cu, SAC, SN100C®, REL61™, and REL22™ alloys, with other alloys, diameters, and spool sizes available on request. Store it clean and dry, away from moisture and sunlight, below 85°F (29°C) for up to 7 years, and don’t let it freeze.
Features and Highlights
- Fast wetting with lead-free alloys
- Extends solder tip life
- ROL0 per IPC J-Std-004
- Passes BONO testing
- REACH and RoHS compliant (lead-free alloys)

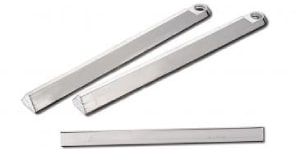

AIM Bar Solder
AIM’s proprietary Electropure™ process produces low-drossing, low-oxide solder alloys that address common problems in PCB assembly. The alloys come as paste, wire, and bar. Zero-defect wave soldering depends on consistent solder quality. Contaminants and high oxide levels cause defects like bridging, projections, and poor wetting, so AIM makes high-purity, low-drossing bar alloys that exceed IPC, JEDEC, and IEC standards.
Electropure bar solder starts with high-quality virgin metals and goes through a special process that removes contaminants and minimizes dissolved oxides. The result is a very pure, low-drossing bar that helps throughput and cuts defects. In a dross comparison, 500 pounds of each alloy type was held in a wave solder pot at 500°F for 6 hours and de-drossed every 3 hours. When the dross was weighed at the end, AIM bar solder produced significantly less than competing brands.
About AIM
AIM Has Made Solder Materials for More Than 30 Years
AIM Solder is a global manufacturer and supplier of solder assembly materials, with support and manufacturing facilities across North and South America, EMEA, and Asia. Its R&D team keeps developing new products, and its engineers help partners work through production challenges. AIM technical support is available around the clock, wherever you are.
CE3S Partner
Request Info or a Demo
Ask About AIM Solder Products
Send your contact info and a CE3S team member will follow up about AIM paste, wire, and bar solder, including pricing and samples.
- Send the form, call, or email us.
- We confirm the products and part numbers for your request.
- You get a quote and one CE3S contact for the order.
