Hakko Builds Compact Soldering and Rework Stations
Hakko’s FX-971 and FX-972 soldering stations and FX-973 rework station all stack, have tip storage and tip removal built in, and connect to Hakko Control Software. For assembly work that needs controlled torque, CE3S also carries CHP’s ATX Intelligent Torque Controller and the ATX drivers it runs.
Cumberland Electronics Strategic Supply Solutions (CE3S) supplies Hakko stations and the ATX torque line. Tell us what you solder or rework, how many handpieces you run, and what torque range you need, and we’ll help you match the station or controller to the job.
Why Order Hakko Through CE3S
- Family-owned and serving manufacturers since 1962
- Help choosing and cross-referencing parts
- No minimum order constraints
- One point of contact from quote to delivery
- 350+ product lines on one account

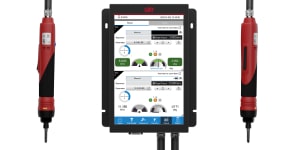

ATX Intelligent Torque Controller
CHP’s ATX line is three torque drivers, the ATX-12, 30, and 50, plus the Intelligent Torque Controller that runs them. The controller has a 10-inch LED-backlit color touchscreen and comes with one port or two, depending on how many drivers you’re running.
You set torque digitally on screen instead of by feel, and a network interface stores and exports the graph data for performance reporting. The drivers are transducer-based, with a non-slip grip, an LED status ring, and a 1/4 inch hex bit. Torque range is 2.4 to 50 kgf-cm at a max speed of 2,000.
Features and Highlights
- Single and dual port controllers
- Torque set digitally on screen
- Large color touchscreen controls
- Three torque driver models

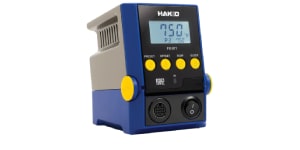

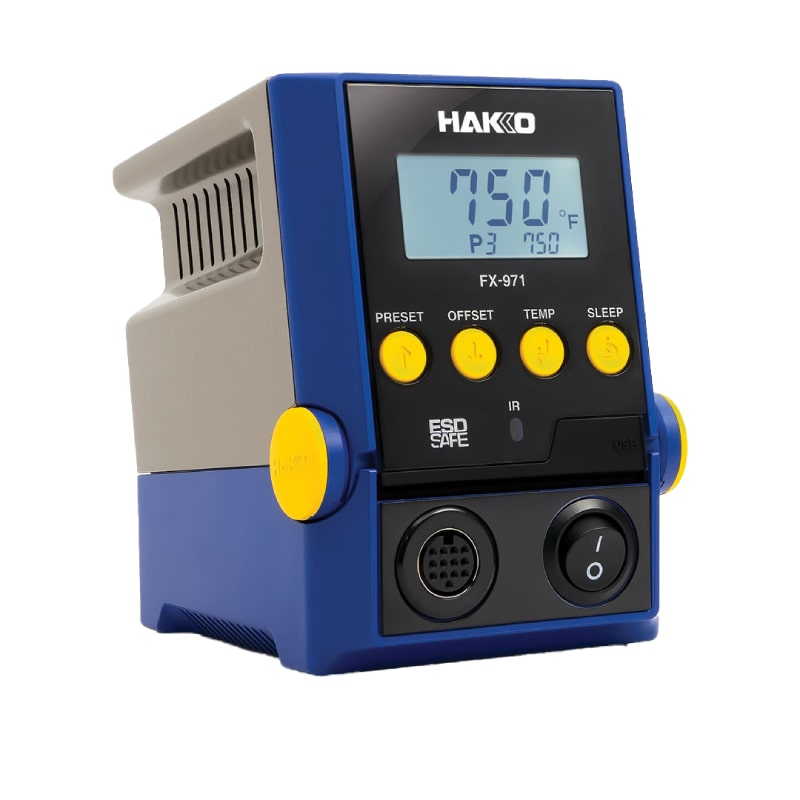

Hakko FX-971 Soldering Station
The FX-971 is a benchtop soldering station built small so you keep more of your bench. It runs 100W across a wide temperature range and drives both a standard and a micro handpiece.
Its face tilts 15 degrees, which keeps the large LCD and its multi-button controls in view while you work. Tip removal and tip storage are built into the holder. There’s no sleep cable, the stations stack, and the wireless IR offset feature works with the FG100B and FG101B. It also connects to Hakko Control Software.
Features and Highlights
- 100W with a wide temperature range
- Hakko Control Software
- Built-in tip storage and tip removal
- Wireless IR offset feature (FG100B, FG101B)

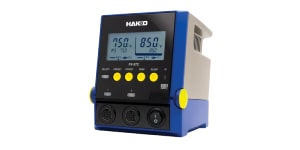

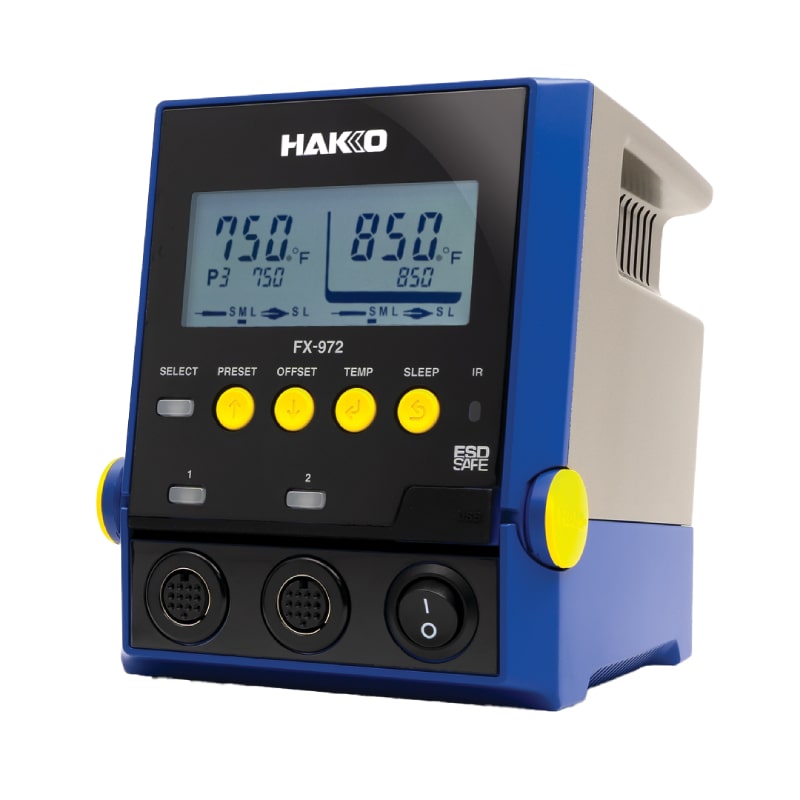

Hakko FX-972 Soldering Station
Built on the FM-203, the FX-972 is a 200W dual-port soldering station that runs eight handpieces, including the micro. Its display is more than three times the size of the FM-203’s and shows set temperature and sensor temperature at the same time. Setup works much the way it does on the FM-203, with a redesigned interface, five programmable presets, a user-selectable sleep temperature, and a 3-letter passcode lock for process control. IR auto offset runs off the FG-100B Tip Thermometer or the FG-101B Station Tester.
A USB port lets you set up, control, and monitor the station from a PC with the Hakko Control Software that ships in the box. Tip storage and tip removal are built in, there’s no sleep cable, and the small footprint lets you stack units when bench space is tight.
Features and Highlights
- 200W with a wide temperature range
- Hakko Control Software
- Built-in tip storage and tip removal
- IR offset works wirelessly with the FG100B and FG101B
Request Info or a Demo
Tell us which Hakko product you’re looking at and we’ll send details or set up a hands-on demo.

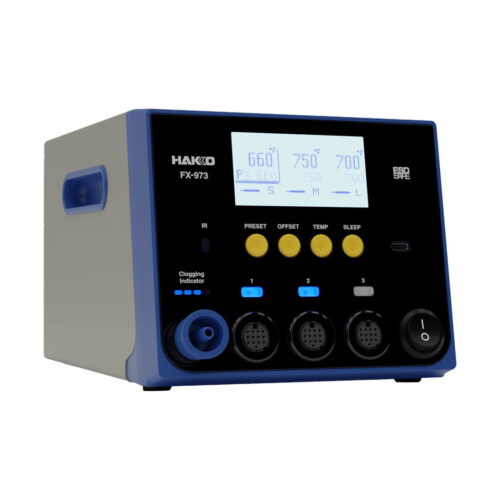

Hakko FX-973 3-Port Rework Station
A direct replacement for the FM-206, the FX-973 is a 400W rework station. A self-contained vacuum system handles desoldering, and there’s enough power to run two handpieces at full output at once. It takes the FR-4103 and FR-4104 desoldering handpieces and doubles the desoldering power of the models it replaces.
Anti-clogging, delay timing for solder removal, and the built-in clogging indicator all come from the FR-410. Three channels run at the same time, ten handpieces are compatible including the micro models, and the backlit graphic display is easy to read. USB-C connects the station to Hakko Control Software, and you also get IR auto offset with the FG100B and FG101B, multi-level process control, five programmable presets per channel, and wireless sleep mode. Tip storage and tip removal are built in, and the stations stack.
Features and Highlights
- 400W with a wide temperature range
- Desoldering handpieces
- Three simultaneously powered channels
- FG100B and FG101B wireless IR offset
About Hakko
Hakko Has Built Soldering Tools for About 70 Years
American Hakko Products, Inc. has run U.S. sales and distribution for more than 40 of those years. The tools hold up in daily use, the support behind them answers when something does go wrong, and pricing stays competitive with other brands in the category. That combination is why Hakko is usually the first name that comes up when someone asks what to buy.
