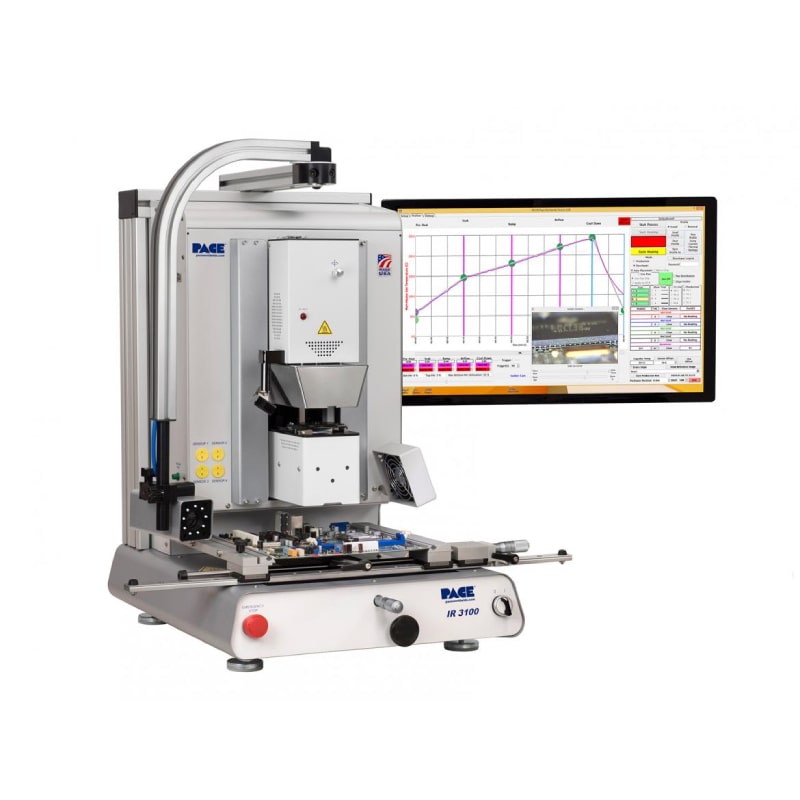

      IR3100 Infrared BGA Rework Station

      The PACE IR3100 simplifies the installation and removal of various SMDs including BGA, QFN, μBGA/CSP, Flip Chip, among others, without the need for nozzles thanks to its powerful 500W infrared top heater and a robust 1000W bottom preheater. Its cutting-edge IR pyrometer ensures accurate, non-contact temperature control in real-time, adjusting automatically to maintain the right heat levels throughout the reflow process. With the inclusion of a Sodr-Cam Reflow Camera, you have the advantage of monitoring the reflow process as it happens, ensuring you miss nothing. The machine is also equipped with user-friendly, Windows-based software designed to streamline the profiling process. This software not only offers easy setup but also enables advanced multi-stage profiling, immediate profile adjustments, flux-dipping, and provides unlimited storage for profiles. This combination of features makes the IR3100 a versatile tool, ready to tackle even the most complex tasks with ease, making it an excellent choice for professionals seeking reliable and efficient solutions.

      Product Features and Highlights

      • Non-Contact IR Pyrometer
      • Ultra-High Precision Placement Capability
      • High Sensitivity Vacuum Pick
      • Sodr-Cam Reflow Camera
      • Height Adjustable Bottom-Side Preheater
      • High-Definition Optical Alignment System
      • Quad-Field Imaging for Large/Fine Pitch BGA’s
      • Integrated Board Support Wand
      • Power Distribution Graph
      • Sensor Offset
      • Made in the USA
