PACE Makes Fume Extraction, Rework, and Soldering Equipment
Four ARM-EVAC fume extraction systems lead the PACE lineup on this page, ranging from the portable ARM-EVAC 105 to the heavy-duty ARM-EVAC 250. You’ll also find the IR3100 and IR4100 infrared BGA rework stations, the MBT360 desoldering and rework station, and the ADS200 soldering station.
Cumberland Electronics Strategic Supply Solutions (CE3S) supplies PACE fume extractors, rework stations, and soldering stations. Tell us how many operators you need to cover, the boards and parts you rework, and how you solder today, and we’ll help you match the right PACE system and set up a demo.
Why Order PACE Through CE3S
- Family-owned and serving manufacturers since 1962
- Help choosing and cross-referencing parts
- No minimum order constraints
- One point of contact from quote to delivery
- 350+ product lines on one account
ARM-EVAC 105 Fume Extractor
With the ARM-EVAC 105, operators get affordable protection from harmful fumes. It’s portable and compact, so it fits on top of or under a workbench, and its brushless motor is durable and maintenance-free.
Filtration starts with a pre-filter that catches coarse particles, followed by a High Efficiency Particulate Arrestor (HEPA)/Gas Filter Cartridge. If you only use one flex-arm, the included inlet cap closes off the unused inlet. Flex-arms, hoses, nozzles, and other accessories are sold separately.
Features and Highlights
- Portable, light, and compact
- Maintenance-free brushless motor
- Low noise level (55 dBA)
- Multiple configuration options to suit your workspace
- ESD-safe flex-arm option
ARM-EVAC 150 Digital Fume Extractor with SteadyFlex Arm
Unsafe particles and gases in the workplace lead to more sick days, higher turnover, more workers’ compensation claims, and lower productivity. Instead of relying on expensive centralized air purifiers, the ARM-EVAC® 150 captures hazardous fumes right where they’re generated. It’s made for light to medium-duty work like benchtop soldering, electronic adjustments, handheld tools, and occasional solvents and adhesives, and it comes with a SteadyFlex ESD-safe arm and nozzle, a wireless remote control, and 3-stage filtration.
Important notice. All PACE fume extraction systems are designed for PCB assembly and rework, specifically flux fumes and other benchtop rework, plus dust from handheld drilling, milling, or grinding and odors from limited use of adhesives and solvents. Current filters aren’t designed to extract high-moisture aerosols or to reduce biohazards in medical and dental applications, so consistent, proper use of PPE and other protective measures for COVID-19 and other pathogens, as recommended by the CDC and other government authorities, remains essential.
Features and Highlights
- Fume extraction for up to 2 operators
- Low-profile, compact unit fits under most benches
- Brushless motor with no costly routine maintenance
- Filter monitor with blockage and change alarms
- 10 airflow speed settings and a wireless remote

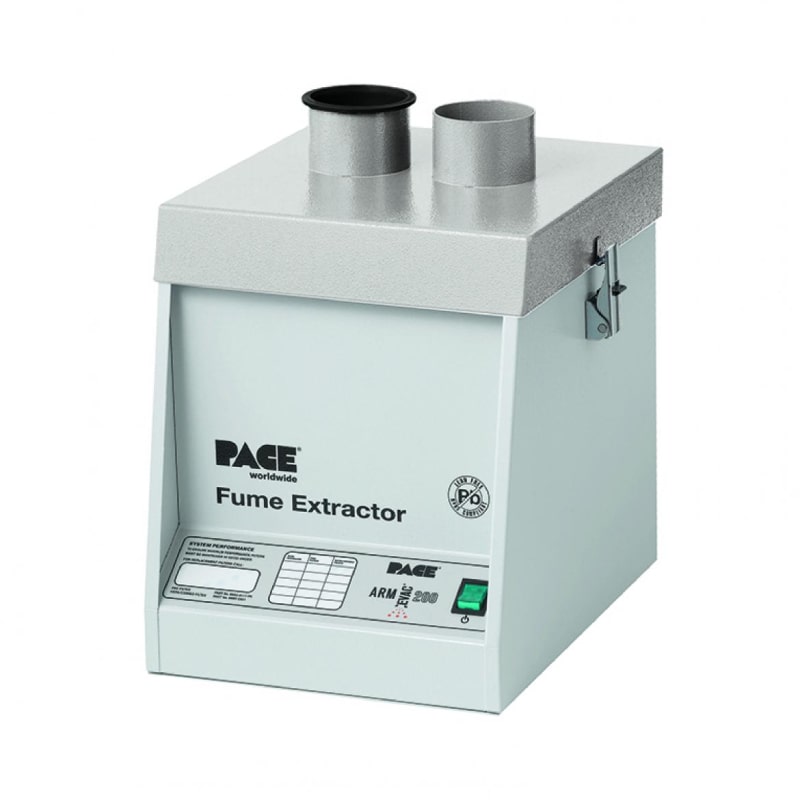

ARM-EVAC 200 Fume Extraction Central Filtration Unit
Designed for light-duty production as well as detailed rework and repair, the ARM-EVAC 200 is lightweight and compact, so it sets up quickly and integrates easily.
Collection accessories and filter options come in a wide range, so you can fit the system to your needs. An optional silencer/mobile cart adds convenience and cuts operating noise.
Features and Highlights
- Two 3-inch inlets
- Low noise level (58 dBA)
- HEPA, extended life, and economy filter options
- Can be fitted with a mobile cart
- ESD-safe flex-arm option
ARM-EVAC 250 Microprocessor Controlled Fume Extraction
Heavy-duty operations that need high-capacity, continuous particle filtering call for the ARM-EVAC 250. A microprocessor runs a graphical LED display that shows filter status, moving from green to yellow to red as the filters clog.
Flow sensors raise motor power automatically as the filters start to block, so performance holds steady. A membrane keypad for calibration and a three-position motor speed button sit on the front panel, and an audible alarm signals when it’s time to change filters. You can customize the setup from a wide selection of collection accessories and filters. An optional silencer and mobile cart help in noise-sensitive areas or where the unit needs to move.
Features and Highlights
- Easy-to-read LED filter condition monitor
- Self-calibrating with intelligent airflow compensation
- Two 3-inch inlets
- Low noise level (58 dBA)
- HEPA, extended life, and economy filter options
Request Info or a Demo
Tell us which PACE product you’re looking at and we’ll send details or set up a hands-on demo.
IR3100 Infrared BGA Rework Station
The IR3100 installs and removes SMDs like BGA, QFN, μBGA/CSP, and Flip Chip without nozzles, using a 500W infrared top heater and a 1000W bottom preheater.
A non-contact IR pyrometer controls temperature in real time and adjusts automatically to hold the right heat through reflow. The Sodr-Cam Reflow Camera lets you watch the reflow process as it happens. Windows-based software makes profiling easy to set up and supports advanced multi-stage profiling, immediate profile adjustments, flux-dipping, and unlimited profile storage.
Features and Highlights
- Non-contact IR pyrometer
- Ultra-high precision placement capability
- Sodr-Cam reflow camera
- Height-adjustable bottom-side preheater
- Quad-field imaging for large and fine-pitch BGAs
IR4100 Infrared BGA and SMD Rework Station
Like the IR3100, the IR4100 installs and removes SMDs such as BGA, QFN, μBGA/CSP, and Flip Chip without nozzles. Its 500W infrared top heater works with a 1900W bottom preheat setup, made up of a 1000W main heater and six 150W peripheral heaters, to spread heat evenly across the board. An IR pyrometer monitors temperature without contact for accurate, real-time control through reflow, and the Sodr-Cam Reflow Camera gives you a live view of the process.
Large PCBs up to 24 x 24 inches fit on the IR4100. Six independently controlled peripheral bottom heaters let you fine-tune heating profiles without accidentally reflowing nearby components, and the Board Support Beam keeps the board from warping or sagging as it heats. Windows-based software with an intuitive interface supports multi-stage profiling, on-the-fly adjustments, flux-dipping, and unlimited profile storage.
Features and Highlights
- 24 x 24 inch (610mm x 610mm) board holder
- 6 independently controlled peripheral bottom heaters
- Non-contact IR pyrometer
- Sodr-Cam reflow camera
- Quad-field imaging for large and fine-pitch BGAs
MBT360 Desoldering and Rework Station
The MBT360 combines PACE’s SensaTemp® heating technology, known for its performance and adaptability, with the AccuDrive® tip-heater cartridge system for demanding soldering and rework. You can run AccuDrive or SensaTemp handpieces, so one bench can handle a wide range of tasks.
Across its new systems and handpieces, PACE keeps everything compatible. Buy what you need now and add to the setup as your needs change, which also simplifies inventory and can bring significant cost savings.
Features and Highlights
- Two AccuDrive ports, a SensaTemp port, and Snap-Vac
- ISB and Auto-Off features that extend tip life
- AccuDrive tip-heater cartridges need no calibration
- Three-channel LCD with set and actual temperatures
- Password-protected temperature settings
ADS200 Soldering Station
Built for people who take soldering seriously, the ADS200 suits cell phone repair specialists, electronics technicians, engineers, hobbyists, and production soldering professionals. Its AccuDrive® temperature control delivers strong thermal performance and precise temperatures, and you won’t have to worry about swapping tip cartridges or calibrating.
Responsive electronics adjust power instantly to each solder joint, so you get good results at the lowest possible temperature on any size project. All-metal construction covers the housing, soldering iron, and stand, so it holds up to continuous, heavy-duty work. Operation is simple. Turn it on, set the temperature with the arrow keys, and start working, with no extensive training needed. The ADS200 is available in different bundles and packages.
Features and Specifications
- AccuDrive™ control technology
- TD-200 AccuDrive™ tip-heater cartridge iron
- Tool stand with sponge, staymoist well, and brass wool
- Temperature accuracy meets J-STD-001 requirements
- ANSI/ESD S20.20 and RoHS compliant
About PACE
PACE Has Built Electronics Assembly and Repair Tools Since 1958
Since 1958, PACE, Inc. has made products for assembling and repairing advanced electronics. Its history includes launching training for printed wire assembly repair and inventing the first vacuum desoldering system. Today the company keeps introducing new products and training for printed circuit board rework, and it builds fume extraction systems that protect workers from harmful particulates during soldering. Its products meet a range of standards, including ISO-9000, industrial, and military.
