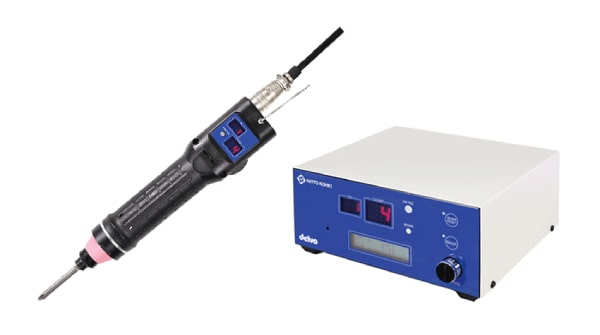

Delvo DLV45C Electric Screwdriver

Request More Information

Delvo DLV45C Electric Screwdriver Overview

The Delvo Brushless Type C Series Electric Screwdriver Model DLV45C offers a wide range of torque settings, with 30 options available on a single driver, and covers a torque range of 5.3 to 39.8 Lbf-in. This model features a current-controlled torque system, allowing for programmable settings, and a high-power DC brushless motor. The housing is protected against electrostatic discharge and can be used both handheld or mounted on a robotic arm. It includes adjustable speed control suitable for various screws and a three-stage programmable speed control function. The device also provides two measuring options, either by time or motor rotation signal, and has two external I/O signal connection ports. Additionally, an LED color indicator displays job status and tool identification, while optional programming through PC software and a built-in screw counting function enhance its versatility and efficiency.

Product Features and Highlights

• 30 separate torque settings can be set on a single driver
• Extensive torque range (5.3 – 39.8 Lbf-in)

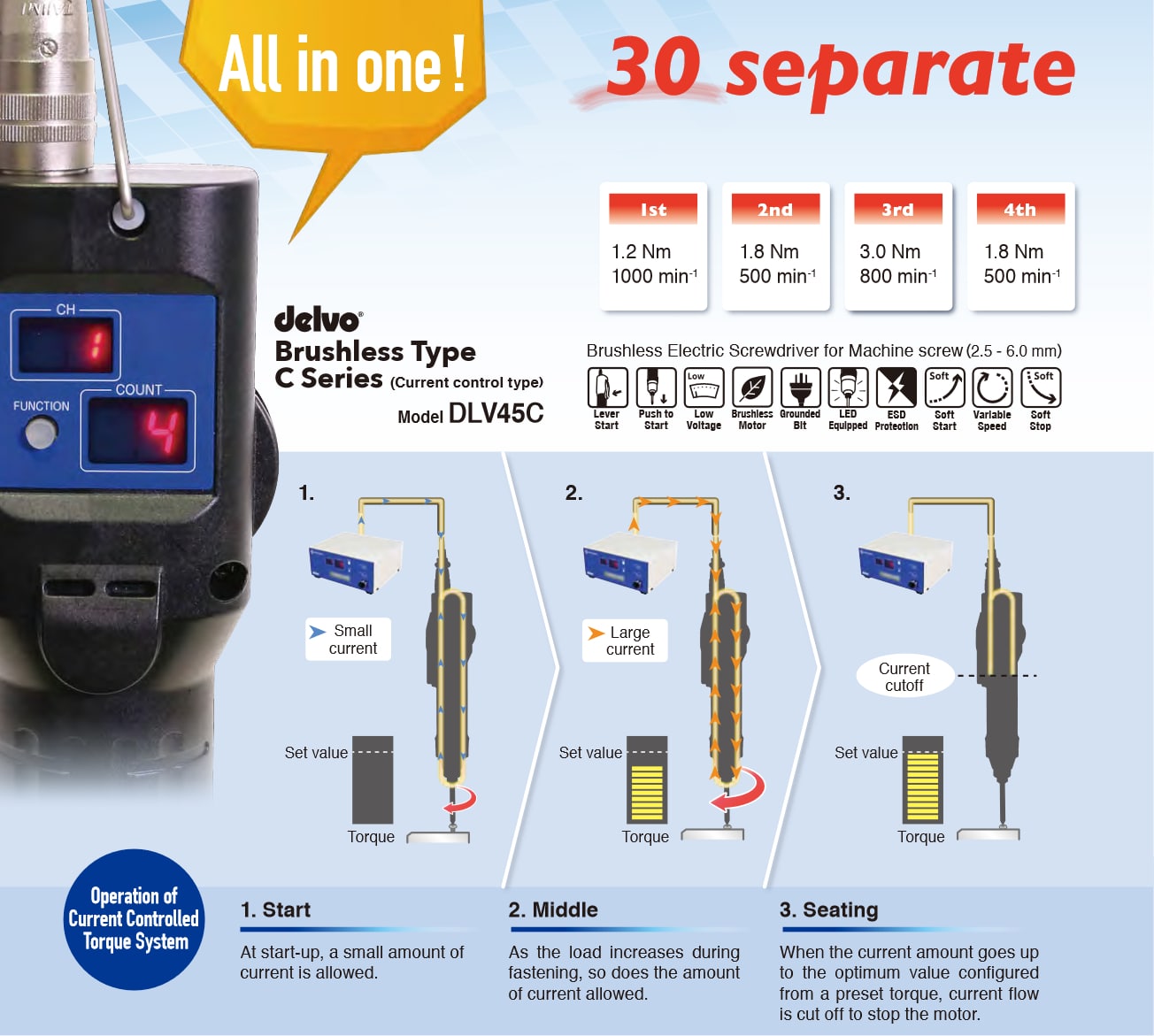

• Current controlled torque system for programmable settings
• High power DC brushless motor
• ESD (Electrostatic Discharge ) protected housing
• Can be used handheld or be mounted on robotic arm
• Adjustable speed control for machine or tapping screws
• Programmable three stage speed control function
• Two types of measuring options (Time/Motor rotation signal)
• Two external I/O signal connection ports (NPN ⇔ PNP, RS-232C)
• LED color indicator for job status, tool identification
• Optional programming for driver through PC software
• Built-in screw counting function
